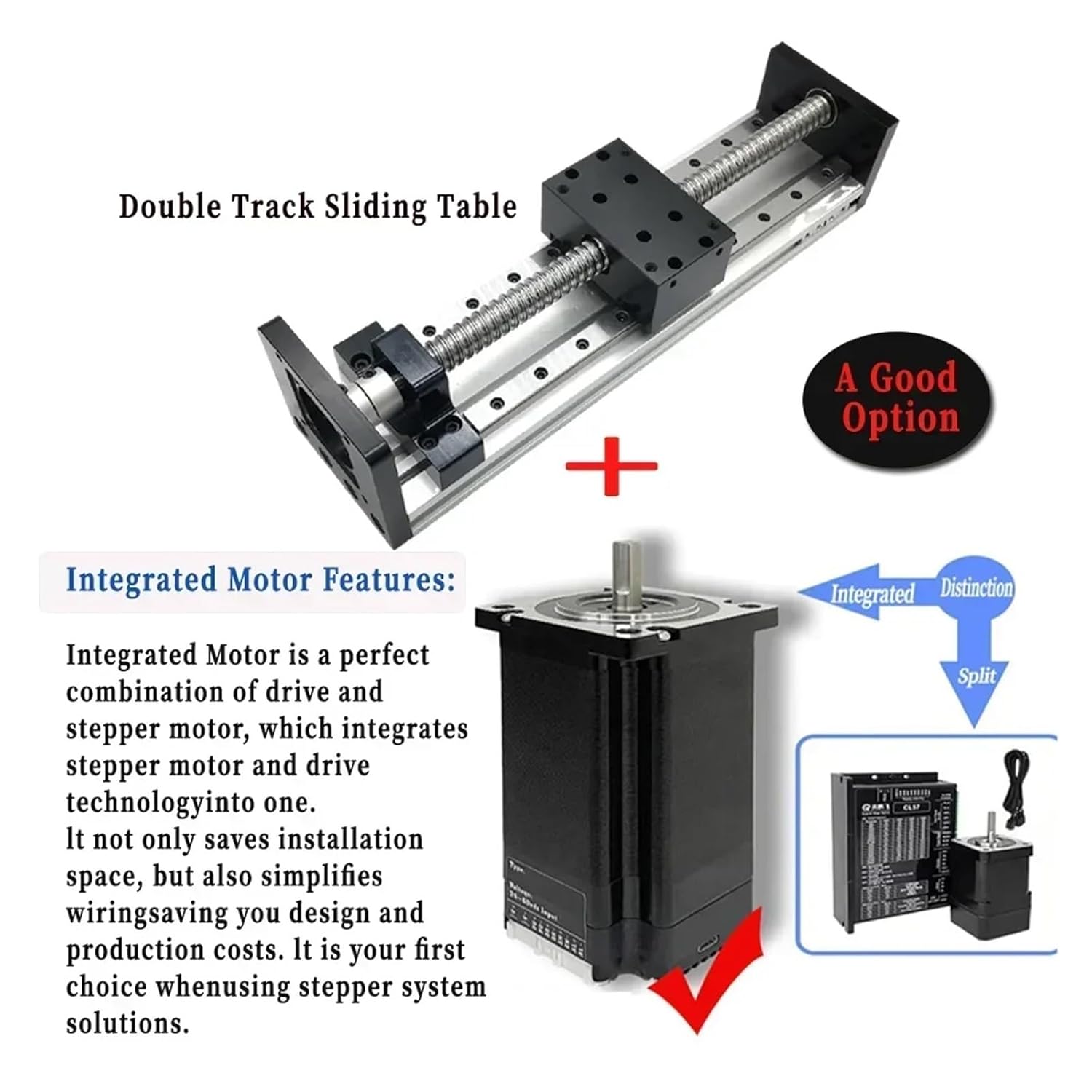

80MM Wide Linear Guide Stage SFU1605 Ball Screw Module Double HGR15 Guide Linear Actuator Kit Nema23 57mm Stepper Motor

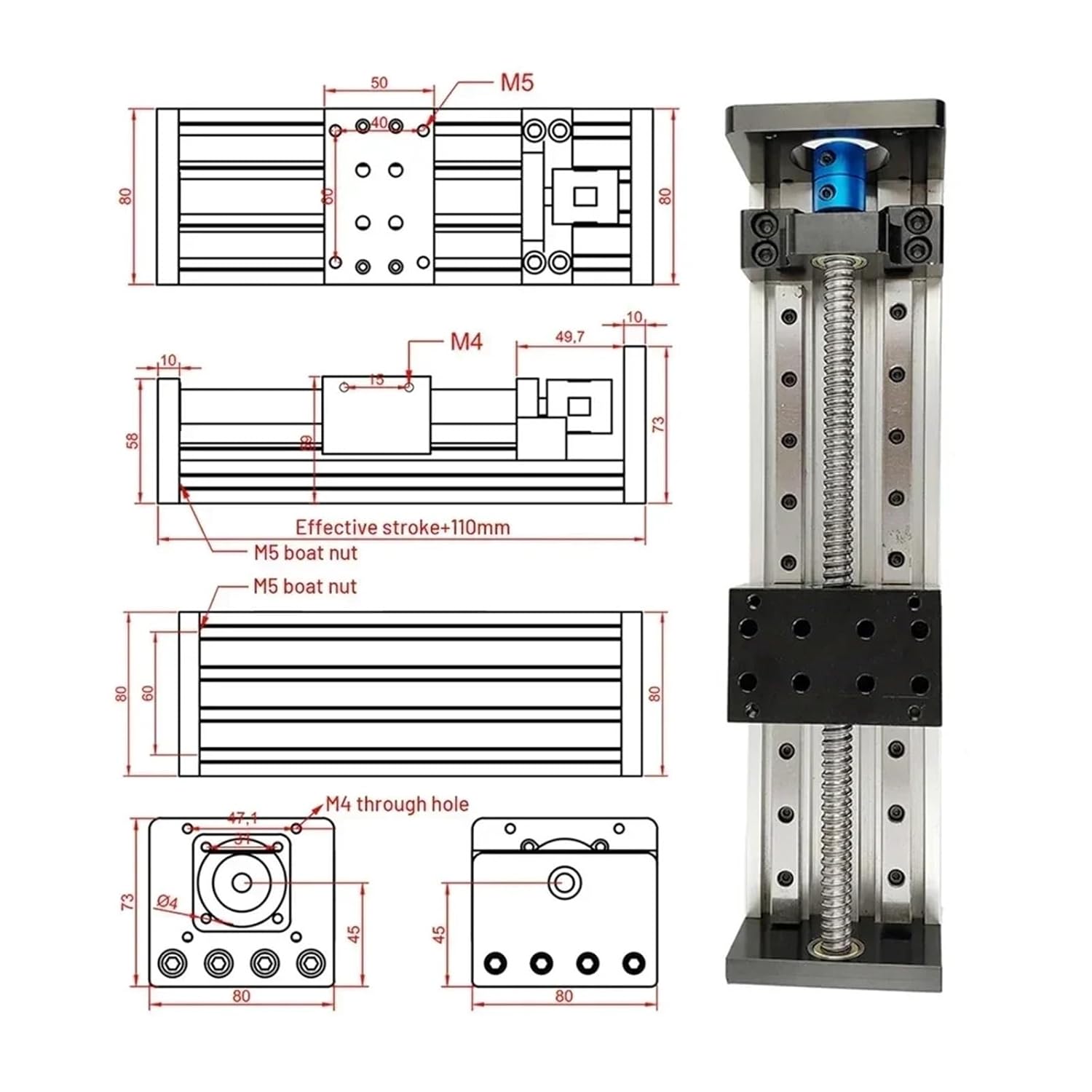

For specific parameters, please refer to the second image in the main image.Only Slide Table:1* SXG5080Slide Table1* 8mm to 8mm Coupling for Nema 23 Motor(If you need a 5mm coupling for Nema 17 Motor, please leave a note)1.2/2/3NmMotor kit:1* SXG5080Slide Table1' Nema 23 57mm Open-loop Stepper Motor1* DM556 Drive1* 8mm to 8mm Coupling1.2/2.2/3Nm Encoder motor:1* SXG5080Slide Table1*Nema 23 57mm Closed Loop Stepper Motor1*HB808C Drive1* 8mm to 8mm Coupling1.2/2/3Nm All in one kit:1* SXG5080Slide Table1* Nema 23 57mm Closed Loop Stepper Motor Drive All-in-one1* 8mm to 8mm coupling MotorParameter:Sliding TableTechnical Parameter:Model: SXG5080Ballscrew type: SFU1605Ballscrew accuracy: C7 levelEffective stroke: 100mm-300mm OptionalTotal length:Effective stroke+110mmMobile panel size: 50*80mmGuide diameter: 12mmGuide Type:2*MGN12RSlider Type:2*MGN12HHorizontal load:Max 60KGVertical load:Max 30KGMaximum speed: 500mm/sBallscrew Repeat positioning accuracy:0.02-0.03mm Supported motor bracket (support customization):SXG5080 Compatible with Nema 17/ Nema 23 stepper motor;Ballscrew and linear rail material:Carbon steel and bearing steelBase plate material: Aluminium alloyMotor Parameter:Model:TB6600Input voltage:DC 9-42VInput/ Output current:0.5-3.5AMaximum power:150WSubdivision:1,2,4,8,16,32Operating environment temperature:-10-45Storage temperature:-40-70Model: HB808CType:DSP Closed loop stepper driveMaximum peak current:13AImpulse response :200KHzMicro-stepping driver:200~25600pprInput Voltage: 24-80VDCProtective function:Over voltage, over current, tracking error, over proofSignal input: Support PUL/DIR and CW/CCW modes (difference)Compatible:4.5~28V signal (Don't need a resistor)Model Number : SXG5080Guide Width or Diameter : 12mmOrigin : Mainland ChinaCertification : CEEffective Stroke : 100mm-300mm OptionalTotal length : Effective Stroke+110mmBallscrew type : SFU1605Horizontal load : 60KG (Max)Vertical load : 30KG (Max)Module material : Industrial Aluminum ProfileModule width : 80mmRepeat positioning accuracy : 0.02mm-0.03mmBallscrew accuracy : C7product keyword 1 : sliding tableproduct keyword 2 : sliding table linear rail stageproduct keyword 3 : linear guide rail cnc motion stageproduct keyword 4 : Ball Screw Moduleproduct keyword 5 : CNC Motion Stageproduct keyword 6 : Linear Guide Rail Table CNC Motion Stageproduct keyword 7 : Linear Motor kitproduct keyword 8 : Motorized Linear Tableproduct keyword 9 : z axis sliding tableproduct keyword 10 : ball screw linear rail with motorproduct keyword 11 : z axis cnc kitproduct keyword 12 : z axis nema 23

• For specific parameters, please refer to the second image in the main image.Compatible with Nema 17/23 stepper motors, offering flexibility in motor selection.
• High-Accuracy Ballscrew:Equipped with an SFU1605 ballscrew with C7 accuracy for reliable positioning.
• Customizable Motor Bracket:Comes with an SXG5080 bracket, customizable for various motor sizes and configurations.
• Precision Linear Guides:Features HGR15 guide rails with a 12mm diameter for smooth, precise motion.
• High Load Capacity:Supports a vertical load of 30KG and horizontal load of 60KG
